24V Compact RF Controller with Remote (28 Keys)

  • $99.99
Shipping calculated at checkout.

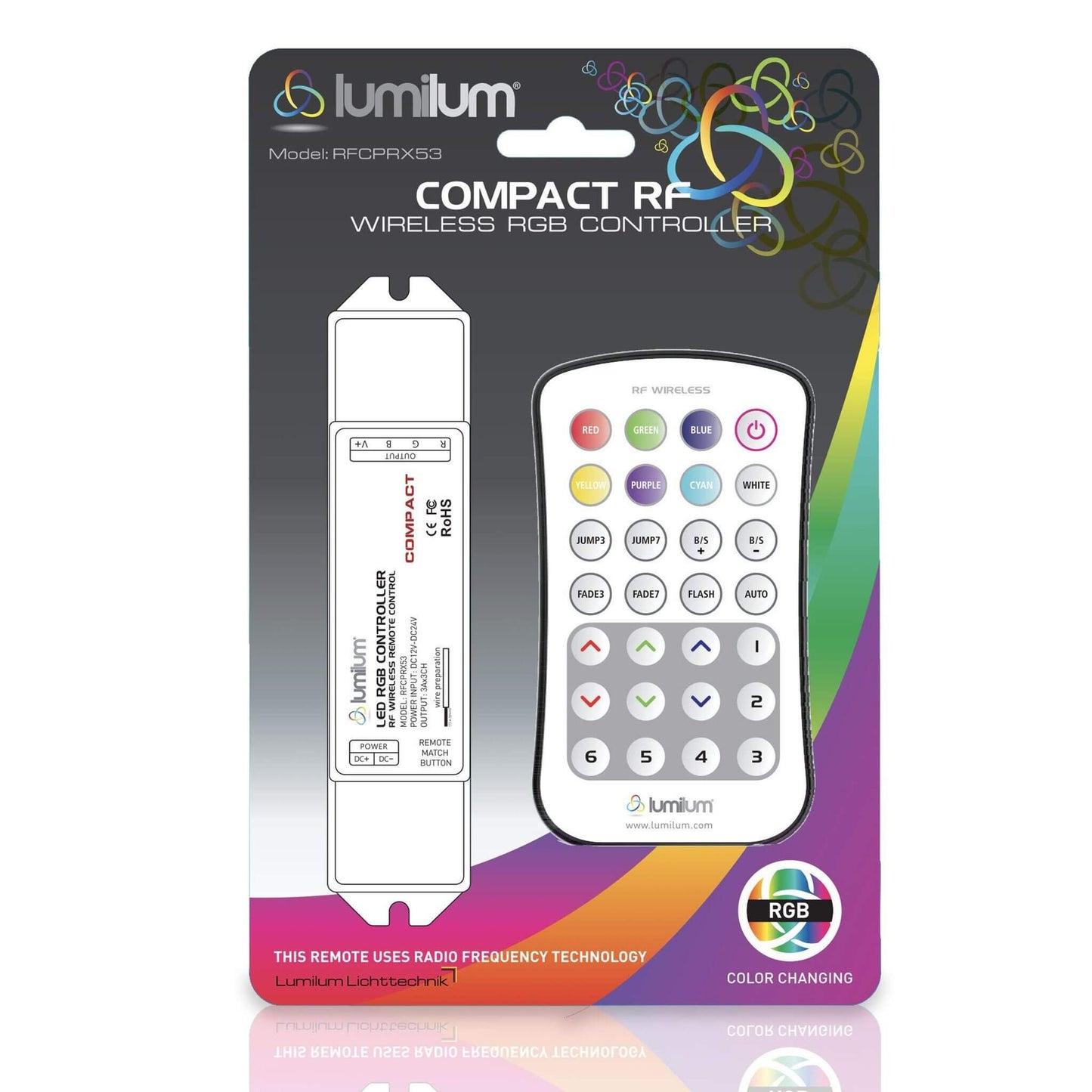

24V Compact RF Controller with Remote

Low Voltage - RGB Color Changing Functions - 28 Keys

This low voltage RF Controller with remote can be used for easy and precise color control of 24V Color Changing LED Strip Lights.




Lumilum Compact 28 key RGB LED Controller paired with a Radio Frequency Remote gives you the capability of defining the exact color you require for your lighting project. Both static and dynamic color-changing modes are possible with this RGB Controller, which also has the option of modifying colors by setting the exact red, blue or green level for each color. Once the desired color is obtained there are 6 memory buttons to save your favorite color formula.

This LED controller with RF remote control has the capability to control up to 2 rolls (32.8ft) of Lumilum RGB Strip Lights (total of 110W at 24V) and can be used with any of the following Lumilum Power Adapters:

    Compact Remote Box Contents:

    • 1x 24V RF Remote for RGB LED Strip Lights
    • 1x 28 key LED RGB Controller for RGB LED Strip Lights

    Key Features


    • 24V - For use with Lumilum Low Voltage RGB LED Strip Lights
    • 28 Keys for explicit color control and memory options to save your favorite color combinations
    • Compact, easy to install

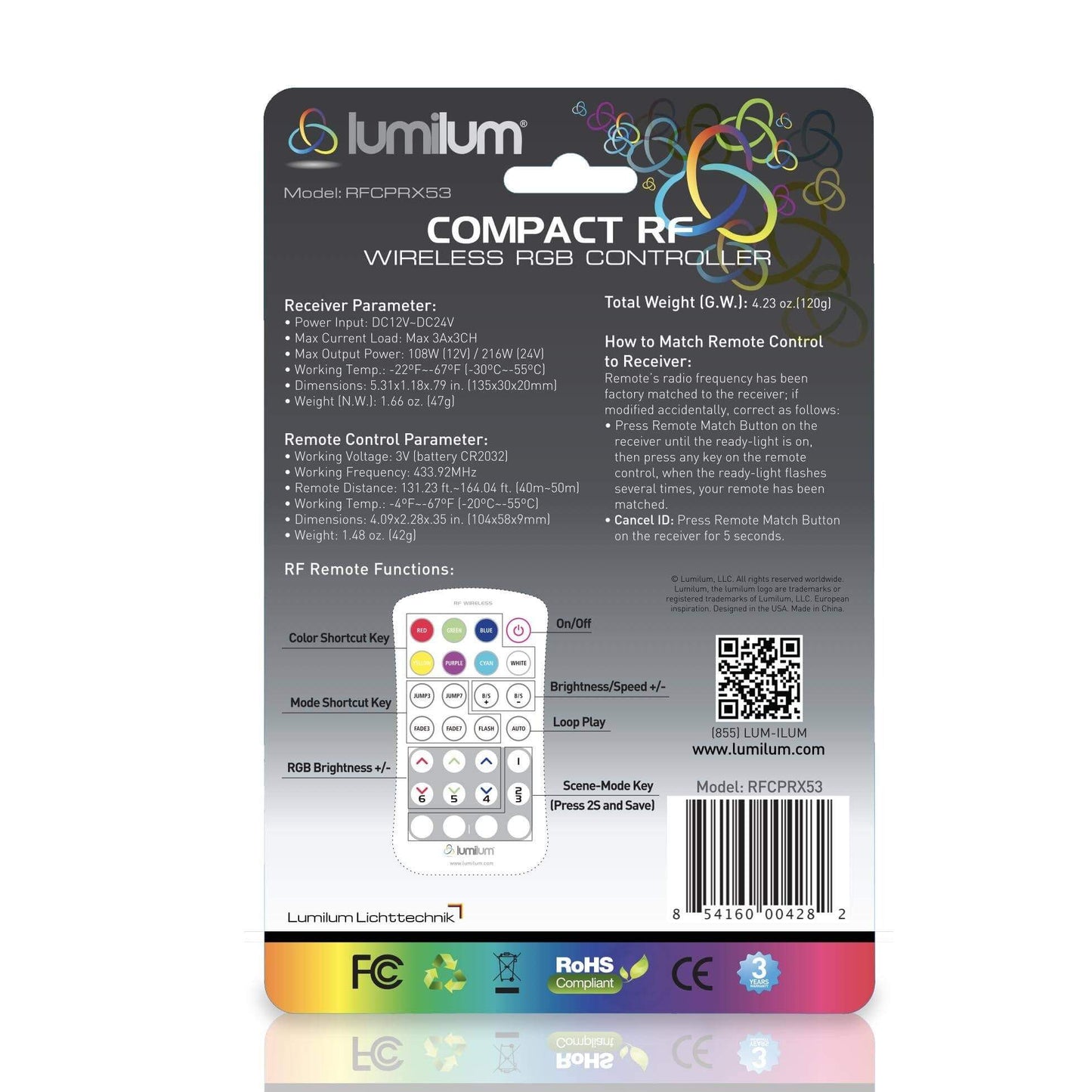

    Safety Certifications: ETL Certified

    Input: 12-24V

    Max Current Load: 3Ax3CH

    Max Output Power: 108W (12V) / 216W (24V)

    Color Combinations: 32 (20 static color modes)

    Working Frequency: 433.92MHz

    Remote Operational Distance: 131.23ft - 164.04ft

    Measurements (L/W/H): 5.31in x 1.18in x 0.79in

    Full Specifications: Lumilum Compact RF Controller Spec Sheet
