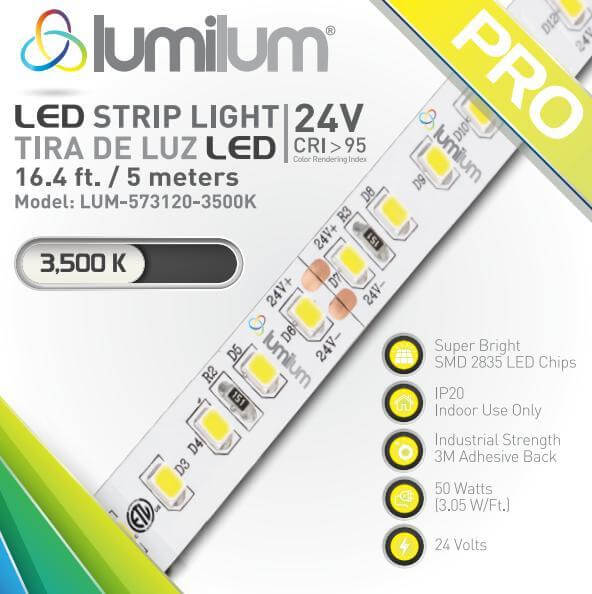

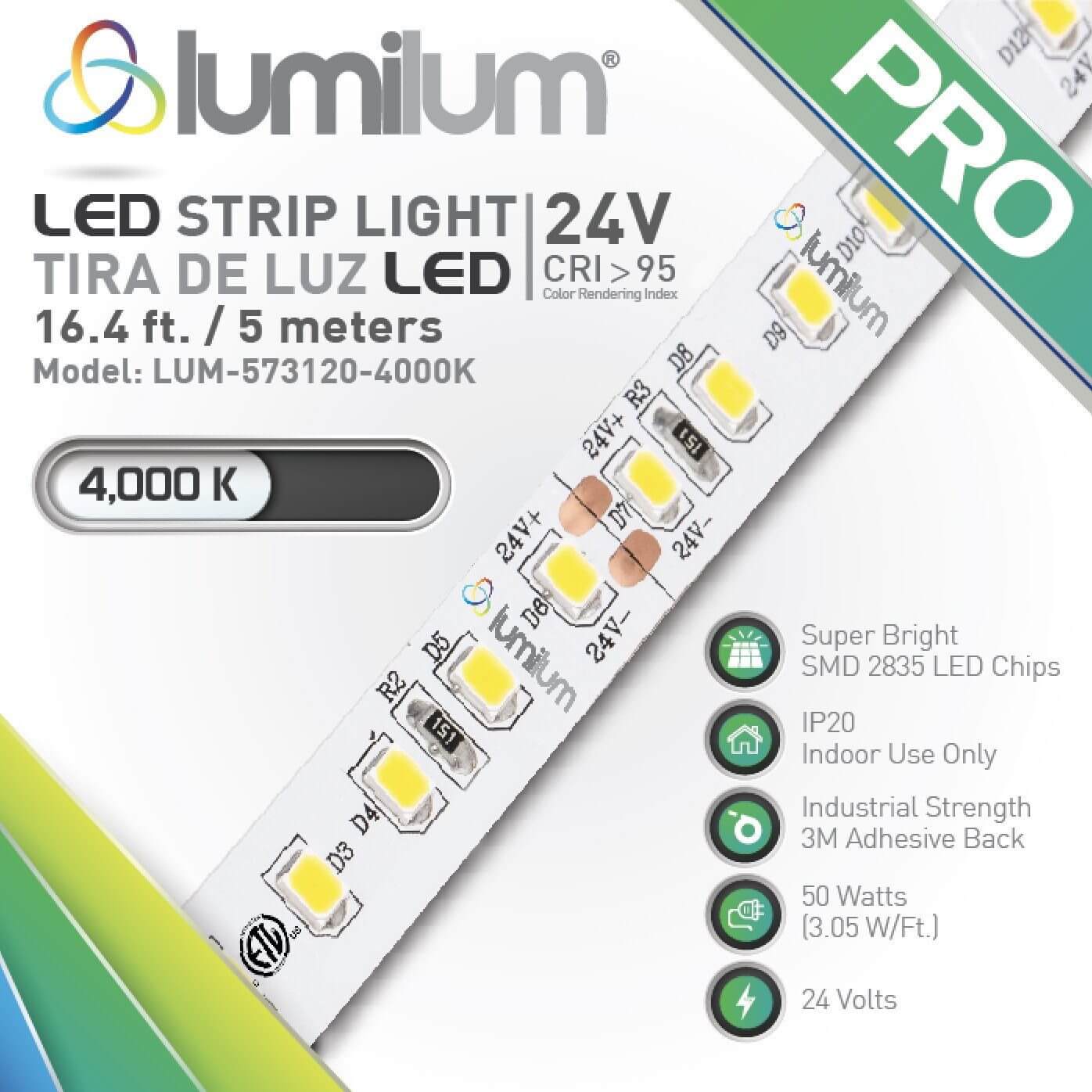

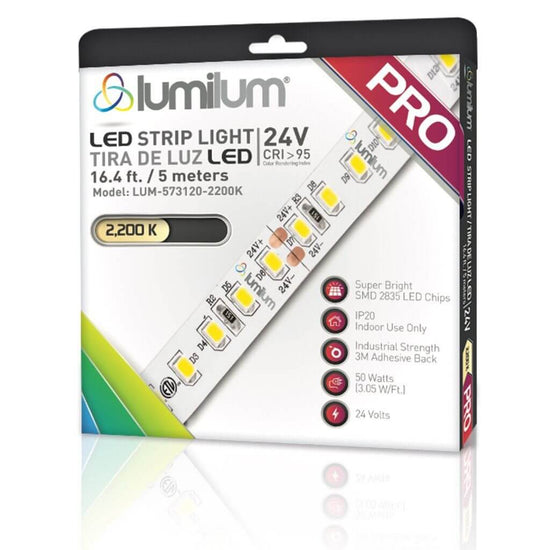

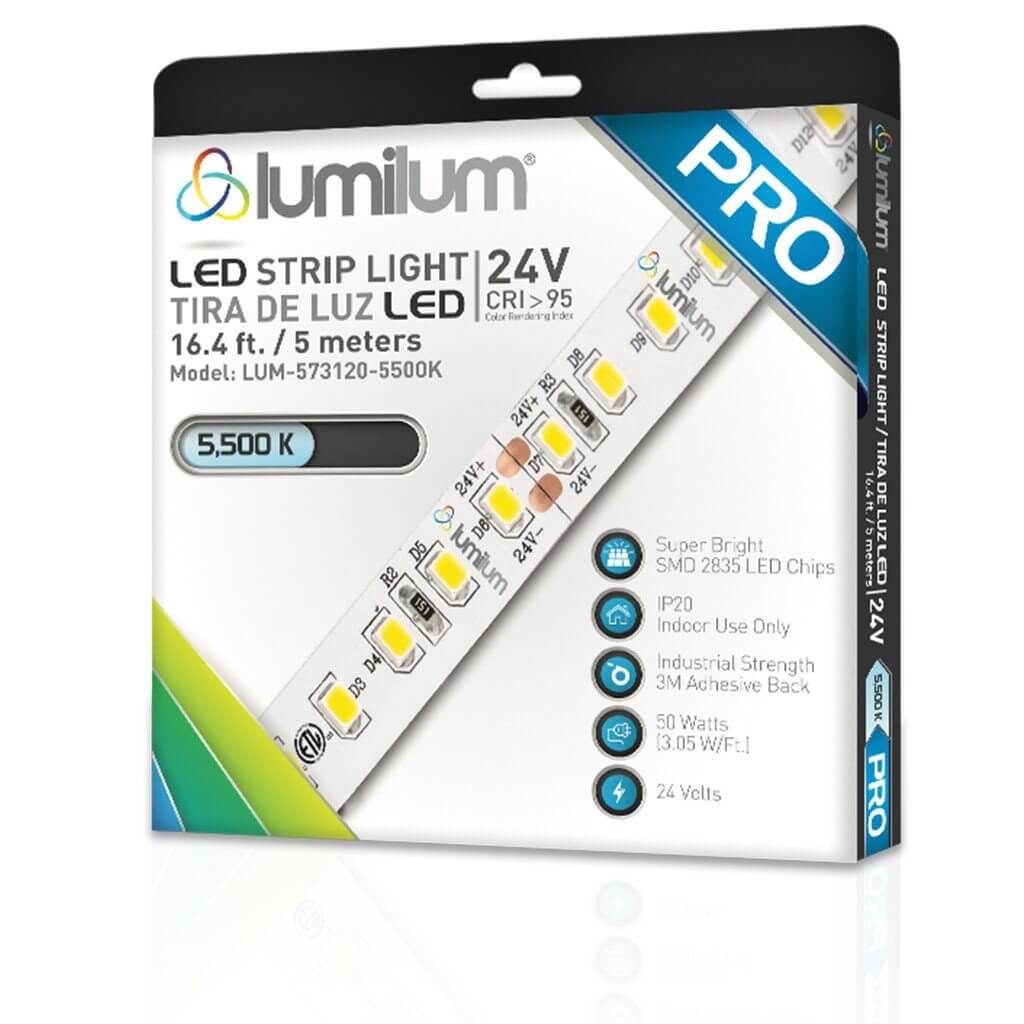

IP20 24V High CRI LED Strip

Low Voltage - High CRI LED Strip - Indoor Use

This single color, low voltage LED tape light is IP20 indoor rated, ultra high CRI, ETL listed, and comes backed with 3M red industrial strength tape for easy and effective mounting.

Description

Lumilum IP20 LED tape lights are part of our PRO line of low voltage led lights. Recommended by architects and designers for the most upscale, demanding projects, these dimmable LED strip lights are built with SMD 2835 LED diodes with a CRI (Color Rendering Index) of >95. This high CRI delivers crisp, perfect light output, and incredibly vibrant colors.

Our energy-efficient, LED strip lights are the best led strip light choice for professional lighting design or indoor home use such as undercabinet LED tape lighting applications. This series is available in white color temperatures as well as RGB color changing LEDs to ensure complete solutions for all uses.

These low voltage dimmable led strip lights are cuttable, should the full 16.4ft spool length not be needed, and 100% dimmable when used with a Lumilum Dimmable LED Electronic or LED Magnetic Transformer. These transformers work with most wall-mounted dimmers that are readily available at your local hardware store.

The tape lights are easy to install, cuttable at marked locations every 2 inches (6 LED chips), contain color-coded wiring at both the beginning and end of strip, and our low voltage commercial led strip lights are able to be daisy-chained (connected in series) up to 32.8ft or two full rolls. A parallel connection is required to cover greater distances if the use of one single power driver is desired.

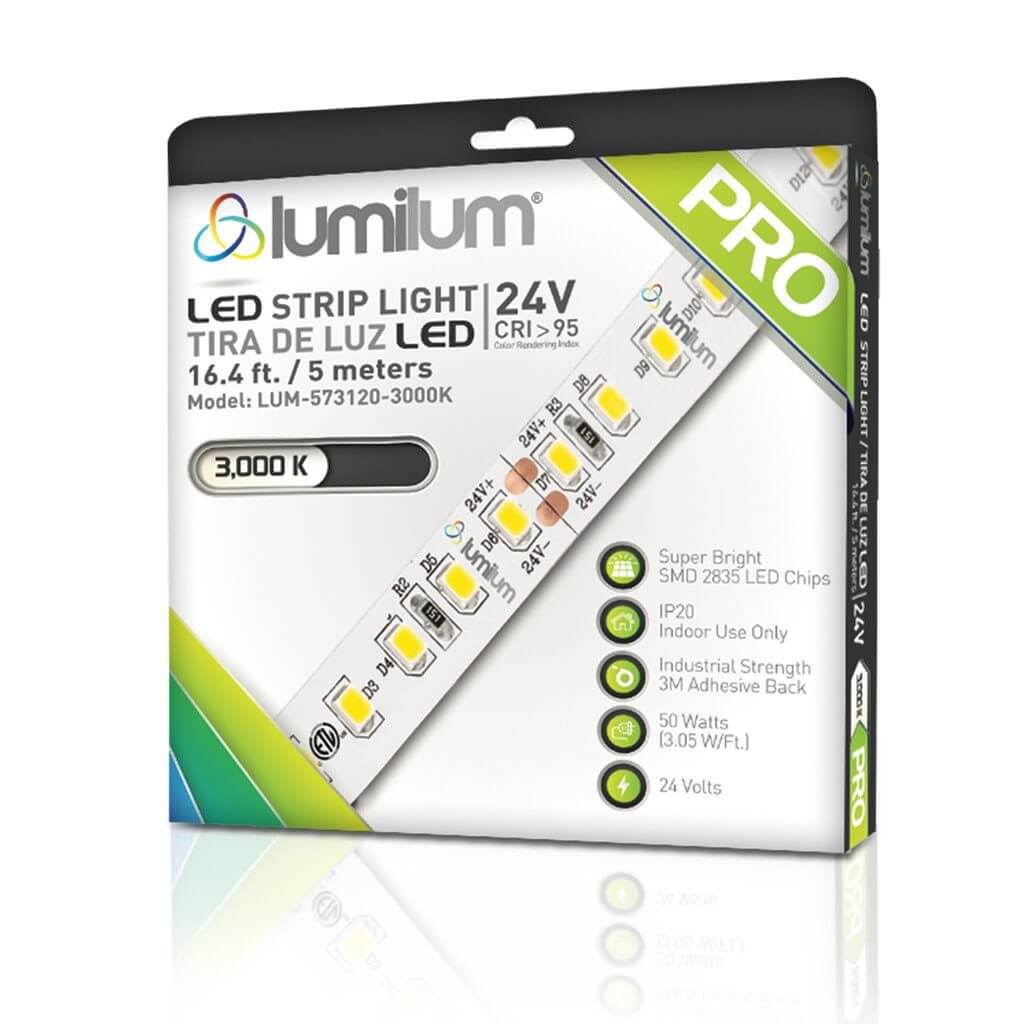

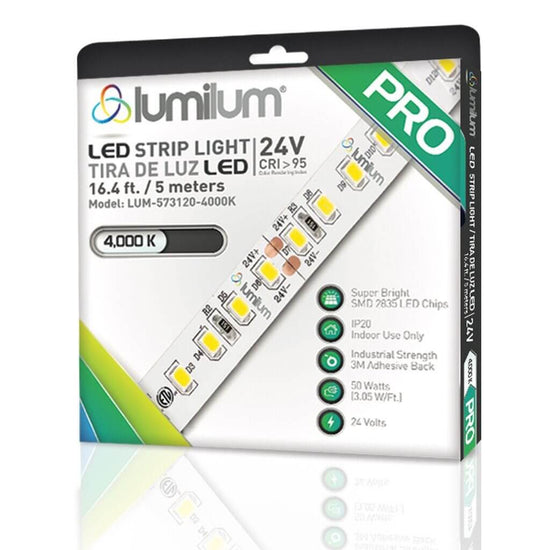

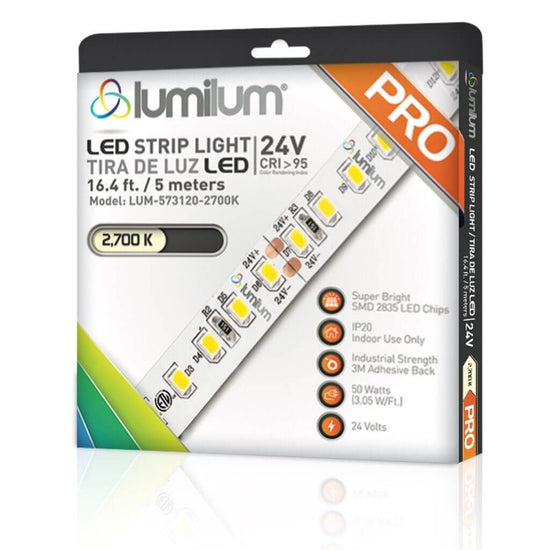

24V LED Light Roll Box Contents:

- 1x 16.4 ft spool of Lumilum IP20 24V LED Strip

Key Features

50 watt, 16.4ft single color light reel

600 ultra-bright, high-performance/low energy LED SMD 2835 chips per led strip roll

CRI (Color Rendering Index) of >95 (out of 100)

Free of projected heat, UV and IR radiation

UL ETL listed for safety

Specifications

MPN/SKU: LUM-573120-####

Safety Certifications: ETL Listed

LED Strip Voltage: 24V DC

LED Chip Type: SMD2835

LED Spacing: 0.66in / 16.7mm

LED Light Roll Length: 16.4ft / 5 meters

LED Strip Height: 0.049 / 1.2mm

LED Strip Width: 0.39in / 10mm

Lumen Output: 300 - 375 lumens/ft

LED Diodes: 38 LED diodes/ft

IP Rating: IP20 (suitable for indoor applications only)

Beam Angle: 120°

Power Consumption: 3.05 Watts/ft

Color Rendering Index: >95 (out of 100)

Cutting Intervals: Cuttable every 2 inches / 6 LED chips at marked locations

Working Temperature: -68°F to 176°F

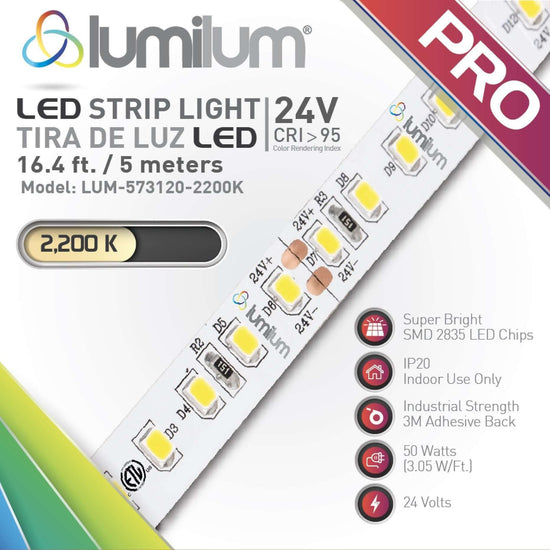

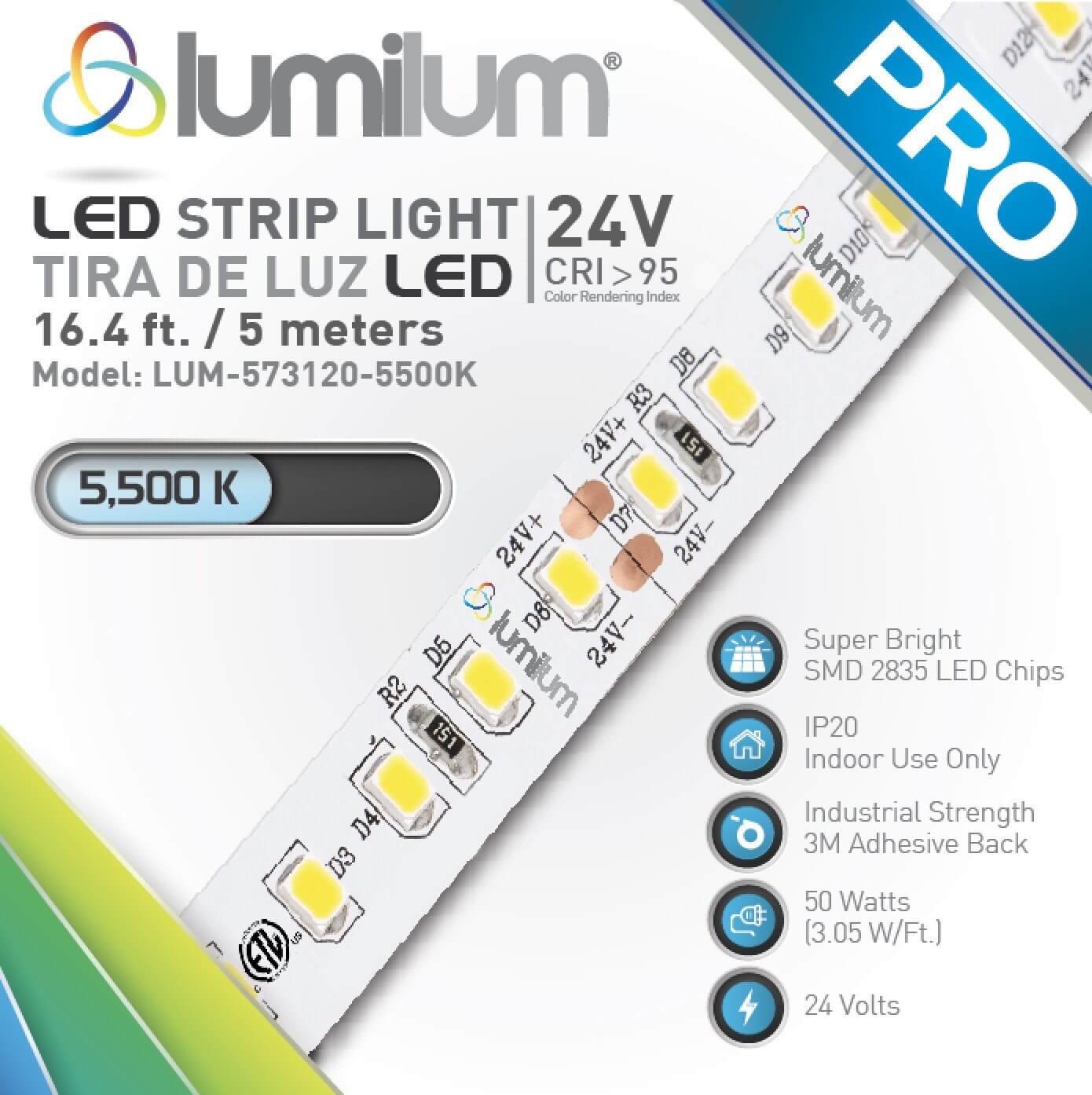

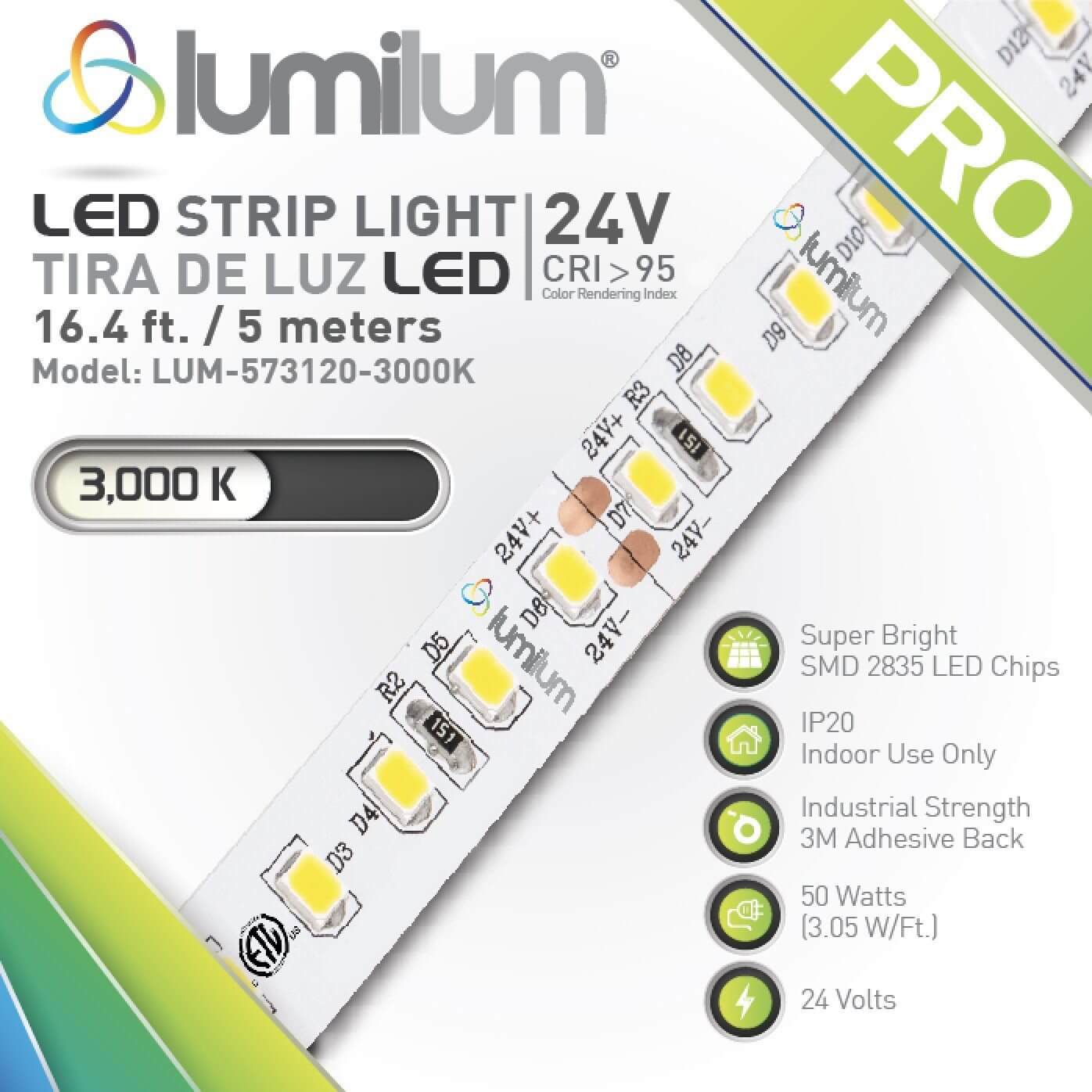

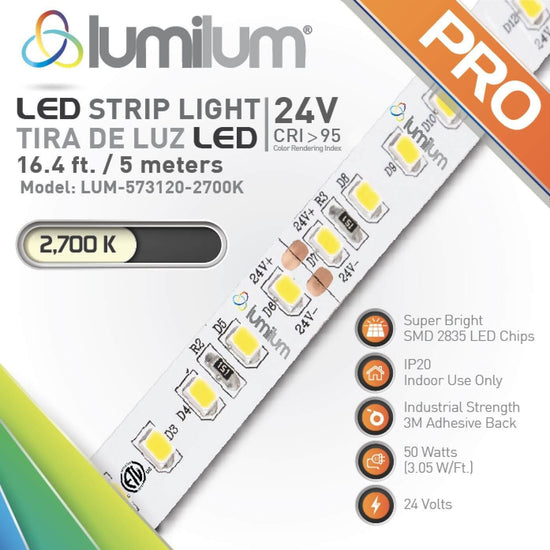

Color Options: 2200K, 2700K, 3000K, 3500K, 4000K, 5500K

Full Specifications: IP20 High CRI LED Strip Spec Sheet

Applications

Installation

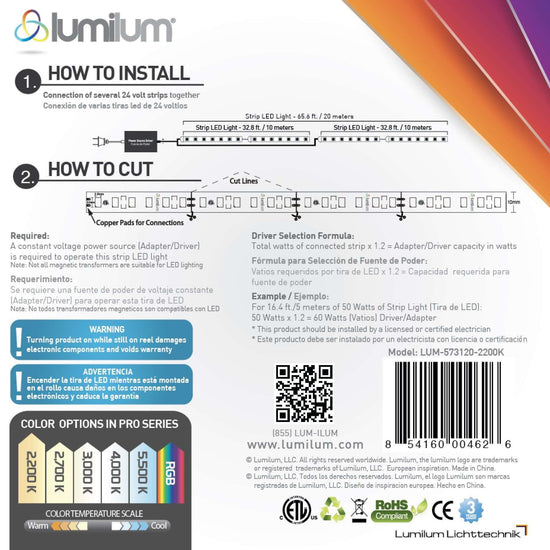

24V LED Strip Lighting Installation Requirements:

IP20 High CRI LED Strip + 24V Transformer (sold separately)
