In-Wall Mounted RGB Controller 24V (Panel) - 3 Zones

  • $209.99
Shipping calculated at checkout.
LUM-U1228W

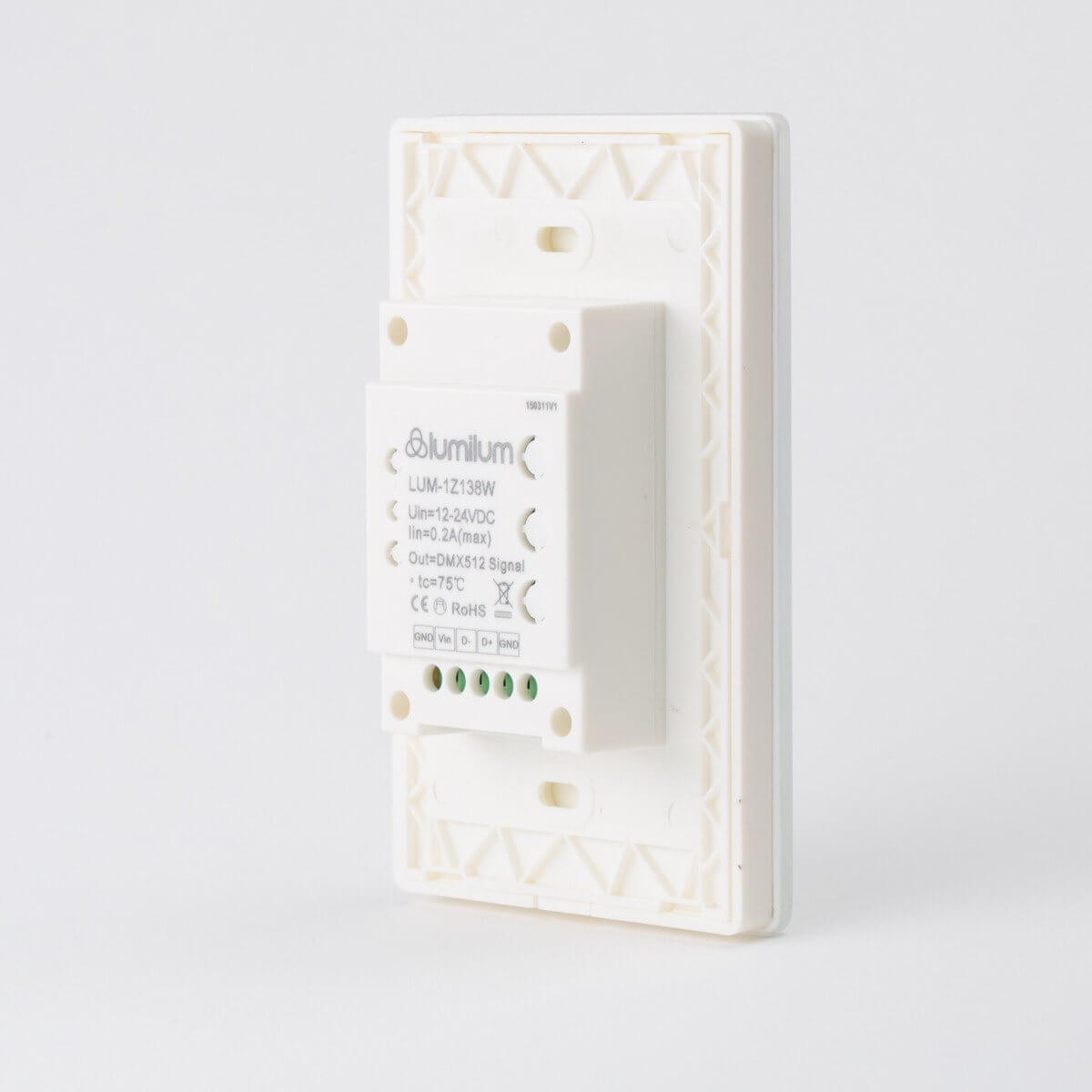

In-Wall Mounted RGB Controller Panel

3 Zones - Glass Touch Panel - In Wall Mountable

This in wall controller for 24V RGB LED Strip Lights has the capability to control RGB plus a white (single color LED strip) for each zone.





Description


This In-Wall Mounted RGB Controller Panel can control 3 zones of 24V RGB LED Strip Lights.  This wall RGB color changing light controller can be connected to wireless receivers (LUM-RF1009) or alternatively be hardwired to DMX Receivers (LUM-DMX212). The controller can be mounted using a standard wall switch or outlet box. Receivers are assigned to one of 3 zones and can be controlled from this In-Wall Mounted Controller be pressing 1, 2 or 3 depending on the zone that needs to be controlled. For example, you may have a cove light in a room assigned as zone 1, a second cove light in the same room assigned to zone 2 and TV back-lighting as zone 3. All 3 zones can be independently controlled from this In-Wall RGB Controller.



RGB LED Strip Controller Contents:

  • 1x In-Wall Mounted RGB Controller (3 Zones Panel)
  • RGB Controller includes a transformer (LUM-PA9120) which can be concealed in the wall switch box



    Key Features



    • Low Voltage 24V
    • DMX LED Technology
    • Control low voltage LED lights in 1-3 zones using a single controller

      • Can be set to function as a group or individual 1, 2, 3 zones

       Specifications



      MPN/SKU: LUM-U1228W

      Safety Certifications: ETL Certified

      Input: 12-24 VDC

      Output: 424MHz / 868MHz

      Measurements (L/W/H): 2.95in x 1.15in x 4.72in

      Weight: 9.4 oz

      Full Specifications: Lumilum 3 Zone LED Wall Controller Spec Sheet



        Applications

        An LED Wall Controller can be used for any low voltage application where multiple zones of color control are needed. This unit handles up to 3 zones and is often used in projects for:

        • stage lighting
        • audio-visual engineering
        • concert lighting
        • cinemas
        • art galleries
        • high end homes
        • festival lighting
        • bar and liquor displays
        • entertainment centers
        • commercial exterior lighting
        • arcade displays
